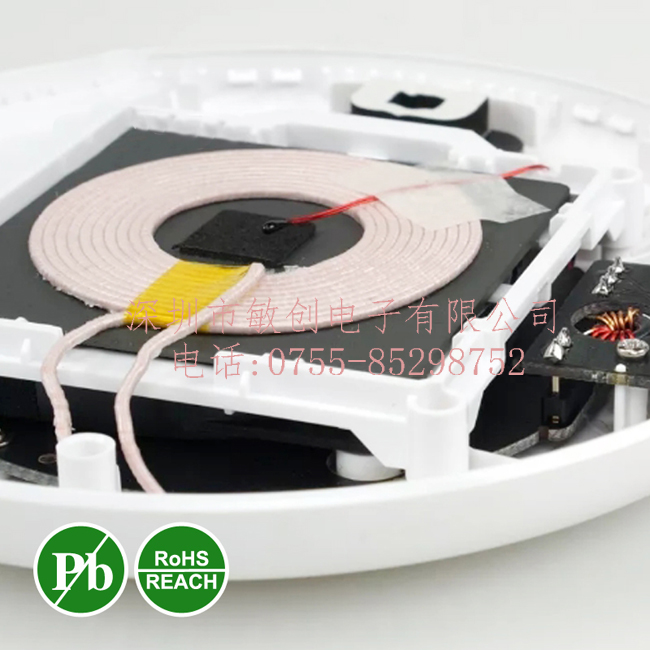

无线充电器NTC热敏电阻的安装实例1

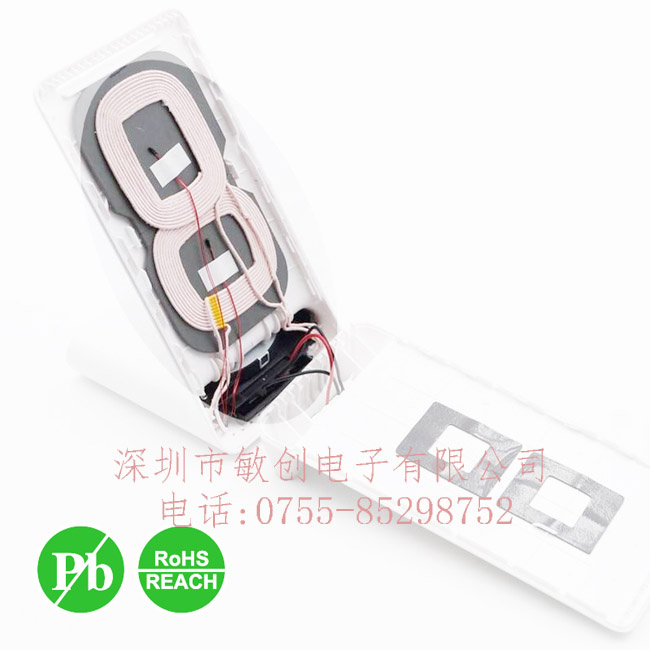

无线充电器NTC热敏电阻的安装实例2
无线充电器NTC热敏电阻的安装实例3
|

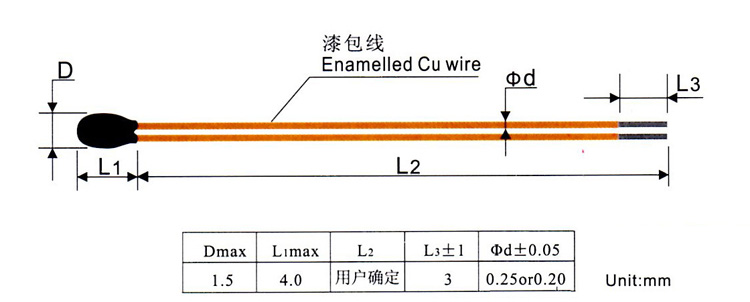

电阻（25℃）：
|
10KΩ
|
头部直径（mm）：
|
1.3毫米
|
|
R公差（％）：
|
±1％
|
长度（mm）：
|
40/50毫米
|
|
B值（25/85℃）：
|
3435K
|
导线类型：
|
漆包线（铜）
|
|
耗散（mW /℃）：
|
> 0.7（静止空气中）
|
封装：
|
环氧树脂
|
|
时间常数T（秒）：
|
3 - 5S
|
其他：
|
易于应用
|
| Temp. | Rmax | Rnor | Rmin |
|---|---|---|---|
| (deg. C) | (k Ohms) | (k Ohms) | (k Ohms) |
| -24 | 87.9501 | 85.2332 | 82.592 |
| -23 | 83.5479 | 81.0082 | 78.5378 |
| -22 | 79.394 | 77.0194 | 74.7084 |
| -21 | 75.4728 | 73.2523 | 71.0899 |
| -20 | 71.77 | 69.6931 | 67.6695 |
| -19 | 68.272 | 66.3291 | 64.4351 |
| -18 | 64.9663 | 63.1485 | 61.3754 |
| -17 | 61.8412 | 60.1402 | 58.4802 |
| -16 | 58.8858 | 57.2939 | 55.7394 |
| -15 | 56.0899 | 54.5998 | 53.144 |
| -14 | 53.4439 | 52.049 | 50.6855 |
| -13 | 50.9389 | 49.633 | 48.3557 |
| -12 | 48.5666 | 47.3439 | 46.1473 |
| -11 | 46.3192 | 45.1743 | 44.0532 |
| -10 | 44.1895 | 43.1172 | 42.0668 |
| -9 | 42.1705 | 41.1663 | 40.182 |
| -8 | 40.2558 | 39.3153 | 38.393 |
| -7 | 38.4396 | 37.5587 | 36.6943 |
| -6 | 36.7162 | 35.891 | 35.081 |
| -5 | 35.0802 | 34.3074 | 33.5481 |
| -4 | 33.5269 | 32.8029 | 32.0914 |
| -3 | 32.0515 | 31.3734 | 30.7065 |
| -2 | 30.6497 | 30.0145 | 29.3896 |
| -1 | 29.3174 | 28.7225 | 28.1368 |
| 0 | 28.0508 | 27.4936 | 26.9448 |
| 1 | 26.8464 | 26.3245 | 25.8102 |
| 2 | 25.7006 | 25.2119 | 24.73 |
| 3 | 24.6103 | 24.1527 | 23.7013 |
| 4 | 23.5726 | 23.1442 | 22.7213 |
| 5 | 22.5846 | 22.1835 | 21.7874 |
| 6 | 21.6436 | 21.2682 | 20.8973 |
| 7 | 20.7472 | 20.3959 | 20.0486 |
| 8 | 19.8931 | 19.5644 | 19.2392 |
| 9 | 19.0789 | 18.7714 | 18.467 |
| 10 | 18.3027 | 18.0151 | 17.7303 |
| 11 | 17.5624 | 17.2935 | 17.027 |
| 12 | 16.8561 | 16.6048 | 16.3556 |
| 13 | 16.1823 | 15.9475 | 15.7145 |
| 14 | 15.5391 | 15.3198 | 15.102 |
| 15 | 14.9251 | 14.7203 | 14.5168 |
| 16 | 14.3387 | 14.1475 | 13.9576 |
| 17 | 13.7786 | 13.6003 | 13.4229 |
| 18 | 13.2434 | 13.0772 | 12.9117 |
| 19 | 12.732 | 12.5771 | 12.4228 |
| 20 | 12.2431 | 12.0988 | 11.955 |
| 21 | 11.7756 | 11.6413 | 11.5074 |
| 22 | 11.3286 | 11.2037 | 11.079 |
| 23 | 10.9009 | 10.7848 | 10.6689 |
| 24 | 10.4917 | 10.3839 | 10.2762 |
| 25 | 10.1 | 10 | 9.9 |
| 26 | 9.7323 | 9.6324 | 9.5325 |
| 27 | 9.38 | 9.2802 | 9.1806 |
| 28 | 9.0424 | 8.9428 | 8.8435 |
| 29 | 8.7186 | 8.6195 | 8.5206 |
| 30 | 8.4082 | 8.3096 | 8.2113 |
| 31 | 8.1105 | 8.0124 | 7.9147 |
| 32 | 7.8249 | 7.7275 | 7.6305 |
| 33 | 7.5508 | 7.4541 | 7.3579 |
| 34 | 7.2878 | 7.1919 | 7.0965 |
| 35 | 7.0353 | 6.9403 | 6.8458 |
| 36 | 6.7929 | 6.6987 | 6.6052 |
| 37 | 6.5601 | 6.4669 | 6.3744 |
| 38 | 6.3364 | 6.2442 | 6.1527 |
| 39 | 6.1216 | 6.0304 | 5.94 |
| 40 | 5.9151 | 5.825 | 5.7357 |
| 41 | 5.7167 | 5.6276 | 5.5394 |
| 42 | 5.5259 | 5.438 | 5.3509 |
| 43 | 5.3425 | 5.2557 | 5.1698 |
| 44 | 5.1661 | 5.0804 | 4.9957 |
| 45 | 4.9964 | 4.9119 | 4.8283 |
| 46 | 4.8331 | 4.7498 | 4.6674 |
| 47 | 4.6761 | 4.5939 | 4.5127 |
| 48 | 4.5249 | 4.4439 | 4.3639 |
| 49 | 4.3793 | 4.2995 | 4.2207 |
| 50 | 4.2392 | 4.1605 | 4.083 |
| 51 | 4.1042 | 4.0268 | 3.9504 |
| 52 | 3.9742 | 3.898 | 3.8228 |
| 53 | 3.849 | 3.7739 | 3.7 |
| 54 | 3.7283 | 3.6544 | 3.5817 |
| 55 | 3.6121 | 3.5393 | 3.4677 |
| 56 | 3.5 | 3.4284 | 3.358 |
| 57 | 3.3919 | 3.3215 | 3.2523 |
| 58 | 3.2877 | 3.2185 | 3.1504 |
| 59 | 3.1872 | 3.1191 | 3.0522 |
| 60 | 3.0903 | 3.0234 | 2.9575 |
| 61 | 2.9968 | 2.931 | 2.8663 |
| 62 | 2.9066 | 2.8419 | 2.7783 |
| 63 | 2.8196 | 2.7559 | 2.6934 |
| 64 | 2.7355 | 2.6729 | 2.6115 |
| 65 | 2.6544 | 2.5929 | 2.5325 |
| 66 | 2.5761 | 2.5156 | 2.4563 |
| 67 | 2.5004 | 2.441 | 2.3827 |
| 68 | 2.4274 | 2.369 | 2.3117 |
| 69 | 2.3568 | 2.2994 | 2.2432 |
| 70 | 2.2886 | 2.2322 | 2.177 |
| 71 | 2.2227 | 2.1673 | 2.1131 |
| 72 | 2.159 | 2.1046 | 2.0513 |
| 73 | 2.0974 | 2.044 | 1.9917 |
| 74 | 2.0379 | 1.9854 | 1.934 |
| 75 | 1.9804 | 1.9288 | 1.8783 |
| 76 | 1.9247 | 1.874 | 1.8245 |
| 77 | 1.8709 | 1.8211 | 1.7725 |
| 78 | 1.8188 | 1.7699 | 1.7221 |
| 79 | 1.7685 | 1.7204 | 1.6735 |
| 80 | 1.7197 | 1.6725 | 1.6264 |
| 81 | 1.6725 | 1.6262 | 1.5809 |
| 82 | 1.6269 | 1.5813 | 1.5369 |
| 83 | 1.5827 | 1.5379 | 1.4943 |
| 84 | 1.5399 | 1.4959 | 1.4531 |
| 85 | 1.4984 | 1.4553 | 1.4132 |
| 86 | 1.4583 | 1.4159 | 1.3746 |
| 87 | 1.4194 | 1.3778 | 1.3372 |
| 88 | 1.3817 | 1.3408 | 1.301 |
| 89 | 1.3452 | 1.3051 | 1.266 |
| 90 | 1.3099 | 1.2704 | 1.232 |
| 91 | 1.2756 | 1.2368 | 1.1991 |
| 92 | 1.2424 | 1.2043 | 1.1673 |
| 93 | 1.2102 | 1.1728 | 1.1364 |
| 94 | 1.1789 | 1.1422 | 1.1065 |
| 95 | 1.1487 | 1.1126 | 1.0775 |
| 96 | 1.1193 | 1.0839 | 1.0494 |
| 97 | 1.0908 | 1.056 | 1.0222 |
| 98 | 1.0632 | 1.029 | 0.9958 |
| 99 | 1.0364 | 1.0028 | 0.9702 |
| 100 | 1.0104 | 0.9774 | 0.9453 |
| 101 | 0.9851 | 0.9527 | 0.9212 |
| 102 | 0.9606 | 0.9288 | 0.8979 |
| 103 | 0.9368 | 0.9055 | 0.8752 |
| 104 | 0.9137 | 0.883 | 0.8532 |
| 105 | 0.8913 | 0.8611 | 0.8319 |
